PRODUCT DESCRIPTION
20T Electric mobile Semi Gantry Crane with single leg for general industry
BMH model electric mobile semi gantry crane is used with CD or MD electric hoist.
1) It is a track travelling small and medium-sized crane.
2) Its standard lifting capacity is 2tons-20tons,proper span is from 7.5m to 31.5m,but could be customizable.Working ambient temp.is -20°C to + 50°C.
3) This crane can be used in general working places.
4) It is widely used in outdoor of warehouse,material yard,also could be used in workshop or warehouse to load and unload cargo.
5) Control mode: generally wireless remote control,but could be customizable.
Features:
Simple and compact structure, steady performance.
Easy to install and high efficiency.
Overload, over-current and low voltage protective device.
Efficient wireless remote control.
Easy maintenance.
Specification:
Lifting capacity is 2ton to 20ton;
Span is generally 7.5~31.5m,customizable;
Lifting height is 6m, 9m, 12m, etc;
Working duty is A4;
Working temperature is -20°C to + 50°C.
Detailed Images:

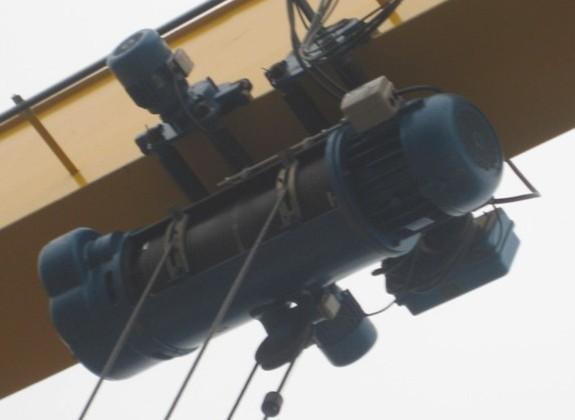

lifting hoist gantry girder track
motor wireless control
Sketch Drawing:
Technical Parameter(customizable):
| Capacity | T | 2,3,5,6,10,15,20 |
| Span | m | 7.5, 10,12,16,20...... |
| Lifting height | m | 6,9 |
| Operation method | | Pendent line with push button/ remote control/cabin control |
| Speed | Lifting | m/min | 8,8/0.8,7/07 |
| Cross travel | m/min | 20,30 |
| Long travel | m/min | 20,30 |
| Electric hoist | type | CD1/MD1 |
| Working duty | | A3/A4;M5 |
| Power supply | AC | 380V/50HZ/3P |
MAIN PRODUCTS
Henan Mine Crane Co.,Ltd started in 2002,and have developed an leading industrial crane manufacturer in China.There are many types cranes and crane spareparts.
- single girder bridge crane
- double girder bridge crane
- single girder gantry crane
- double girder gantry crane
- semi gantry crane
- mini portable gantry crane
- rail mounted gantry crane
- container gantry crane
- hydraulic lifting platform
- column-type/wall-hanging jib crane
- various lifting mechanism:wire rope hoist, chain hoist, winch, grab, magnet, hang beam...
PACKING & SHIPPING
FAQ & CONTACT US
Are you interested in this BMH series single girder semi gantry crane?We are ready to quote for you according to your customizable paremeters as follows. (kindly please provide the following information when sending enquiry to us.)
1. Lifting capacity :_____ton
2. Span :______meters (it is center to center distance between two tracks)
3. Lifting height :_____meters (it is the distance from center of hook to floor)
4. Industrial voltage _____V, _____HZ, 3Phases
5. Control mode: Pendent or Wireless remote control or both?
6. Do you also need us to supply rail and bus bar: YES or NO? , If yes,pls tell me gantry cranes' each travelling length:_____meters
7. What material to be lifted?
8.Usage:general industry? Indoor or outdoor?
Welcome your requirements.
